montaggio LJ12A3-4-Z/BX-5V - gt2560 a+

[BI3D]

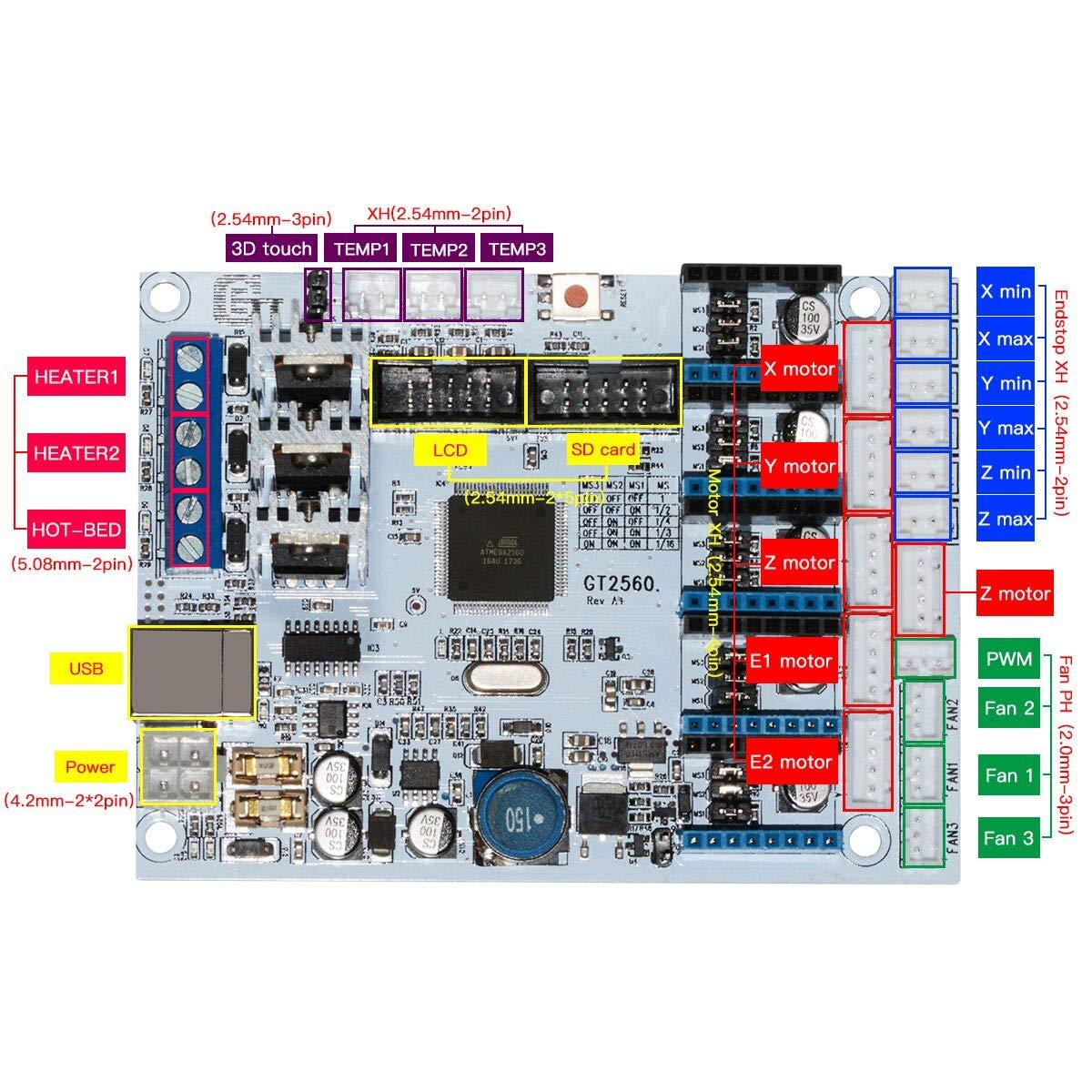

Ciao, ho acquistato il sensore LJ12A3-4-Z/BX-5V e vorrei montarlo sulla gt2560 a+ predisposta per il bed leveling, ma ho dubbi su come farlo.. Qualcuno mi può aiutare?

LJ12A3-4-Z/BX-5V

finglaiGeneral

Model number	LJ12A3-4 series
External dimensions	M12x60
Installation type	Non-shielded
Detection distance	4mm
Setting distance	0-3.2 mm
Supply voltage	6-36Vdc, 5Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz
Output current	DC type: 300mA max; AC Type: 400mA
Standard detected object	Mild steel (12x12x1mm)
Sensing object	Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency	500Hz
Matched mounting bracket	M12 mounting bracket
Matched mounting connector	Only for connector type: 3 wires bend connector, 3 wires straight connector
Output indication	Red LED
Short-circuit protection	No
Reverse connection protection	Yes
Insulation resistance	50MΩ min (between charging part and housing)
Dielectric strength	1000Vac, 1min (between charging part and housing)
IP Rating	IP65
Operating temperature	-25 to 70 °C (13 to 158 °F)
Cable length	1.2m, PVC cable
Material	Case: Brass-nickel plated; Sensing surface: ABS

[Hinokami]

https://www.geeetech.com/forum/viewtopic.php?t=18661

C'è un po da fare.
